SmartLux Energy Saver
SmartLux is a comprehensive Light Energy Management and Savings system which is compatible with Lighting loads of all
kinds. The system is fully programmable via embedded controller or PC based software.
Lighting energy constitutes a substantial part of the overall energy consumption in commercial and industrial centres.
Upto 40% energy can be saved, while reducing losses, wastage and over lighting conditions. SmartLux enables
corporations to save energy by eliminating waste via facility wide dimming and switching.
Using the software, the facility operator can locally or remotely access SmartLux and manage any of the elements listed below.
- Schedule or manually implement automatic energy reduction levels and on/off switching
- Participate in peak shaving/load shedding/utility energy requirements without disruption of work
- View power usage and energy consumption
Light sources are susceptible to mains fluctuations and spikes. To operate at full life cycle and to maintain lumen output, they need to operate at a voltage that is within 5% of their operating range.
The brain of the system is an intelligent controller, which regulates the luminous flux intensity of lighting sources. The system starts by automatically going through a warm-up cycle for a time period. After this the system switches to the desired schedule based on 4 different programmable output levels. A manual bypass is also provided on the controller for maintenance purposes.

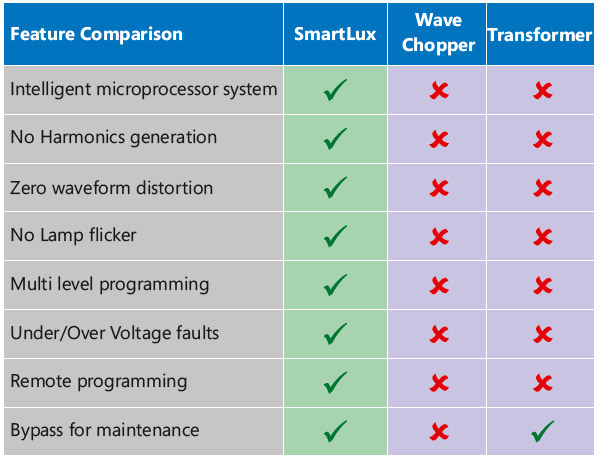

Unlike dimming ballasts or retrofit devices, this system can ve used without any expensive changes in existing wiring or lamp fixtures.
Savings
Energy reduction (KWh): Industries pay per unit charges based on energy consumed in a variety of rate structures like slab based rates, and TOU
(time of use) rates. SmartLux saves energy during operating hours of the lighting systems, thereby generating significant energy savings.

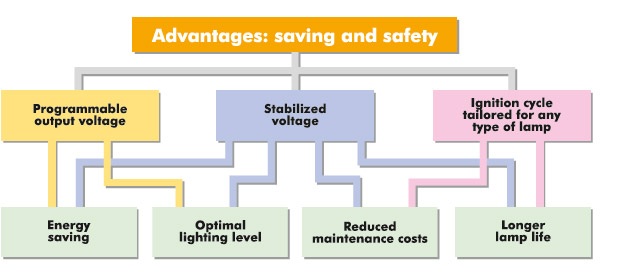

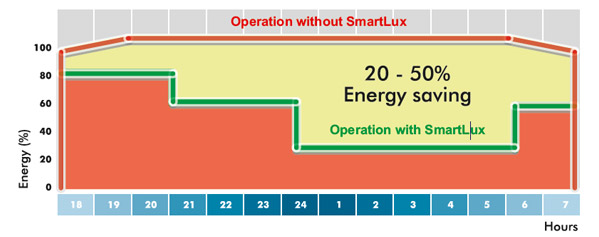

Direct cost savings upto 40% can be achieved by using SmartLux. These savings are three pronged:
-- Savings due to preset voltage levels (30-40%)
-- Savings due to stabilized voltage (5-6%)
-- Savings due to increased lamp life, reduced
-- replacement & maintenance costs
Key Features and Advantages
• Embedded Microcontroller based technology with software interface via RS-232 and ethernet

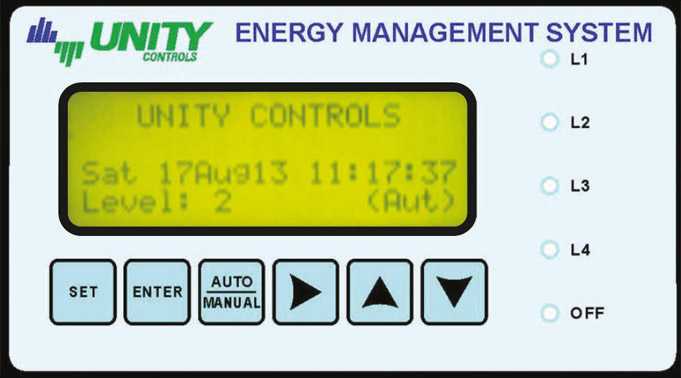

• Large 20x4 LCD display with backlight, Time/Date and current preset level
• Fully programmable Daily / Monthly / Yearly calendar with Holiday scheduler
• Four different output levels / voltage setting
• Programmable warm-up time of 0 - 30 minutes
• Displays all 3 phase power & energy parameters
Technical Specifications
Ratings | 16, 28, 36, 50, 70, 86, 110, 130, 150, 175, 220 KVA |
Input Voltage* | 360 - 460 V AC / 340 - 480 V AC |
Phase | 3 Phase, 4 Wire |
Frequency | 47 – 53 Hz |
Output Voltage | 230 V RMS Stabilised |
Efficiency | > 98% |
Regulation | Nil |
Type of Load | Suitable for 0 to 100%, unbalanced |
Metering | 3 Ph V, I, F, KVA, KW, KWH, KVAR, min, max, Avg Values |
Interface | RS - 232 / RS - 485+ |
Protections | Overload & Short Circuit Bypass Switch |
Cooling | Air Cooled |
Ambient | 0 - 45 °C, RH upto 90% |
Enclosure | Sheet metal, epoxy powder coated RAL 7032 |
*Non standard voltages are also available. +Optional |
